Leeyang 52-52mm Integrated/Internal Cable Routing Headset with Plastic Cover (#LY2020)

Size: 1-1/8"Threadless Integrated Headset

Diameter:

Height:

Weight(重量)

Bearings():§52x§40x8H×45°×45°x2pcs

Compatible with racing bikes, mountain bikes Specialized，Cannondale，Santa Cruz， Bianchi，Pinarello，Giant，Trek, Cervélo...

DETAILED TECHNICAL SPECIFICATIONS

• Product Type: Integrated Cable Routing Headset

• Bearing Size: 52mm - 52mm (Both upper and lower bearings have an outer diameter of 52mm)

• Dust Cover & Spacer Material: High-grade ABS plastic—durable, impact-resistant, and weight-optimized

• Bearings: Premium sealed steel bearings, designed with superior dust and water resistance for ultra-smooth rotation

• Compatibility: Ideal for carbon or aluminum frames with oversized straight/tapered headtubes designed to support fully internal cable routing from the stem into the frame.

KEY FEATURES

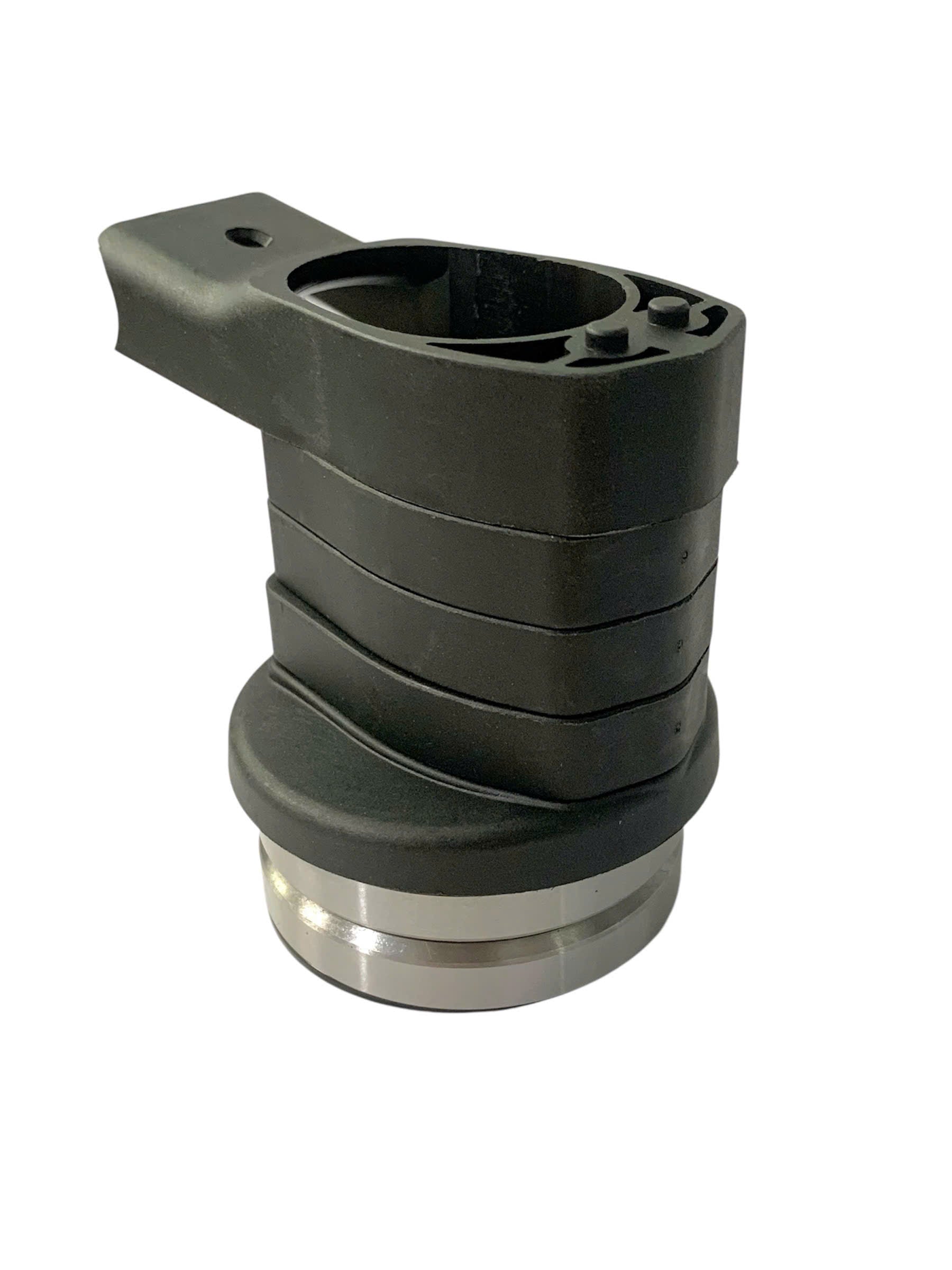

• Full Internal Cable Routing Support: The dust cover and spacers are engineered with dedicated channels/openings for seamless cable routing. Cables run directly from under the handlebar/stem, through the headset, and into the frame without being exposed.

• Smart Spacer System:

  • Includes aerodynamic interlocking spacers that can be split/opened. This allows for quick handlebar height adjustments without needing to disconnect or bleed brake and shift lines.

  • Sleek, rounded profile contours perfectly with specialized stems, giving the cockpit a clean, fully integrated, and professional look.

• Premium Sealed Bearings: Equipped with dual red-rubber sealed bearings to lock out water and moisture while retaining grease inside. Ensures frictionless steering, zero play, and long-lasting performance.

• Ultra-Lightweight Design: By utilizing high-strength engineering plastics for the dust cover and spacers, this headset significantly reduces cockpit weight compared to heavy aluminum alternatives.

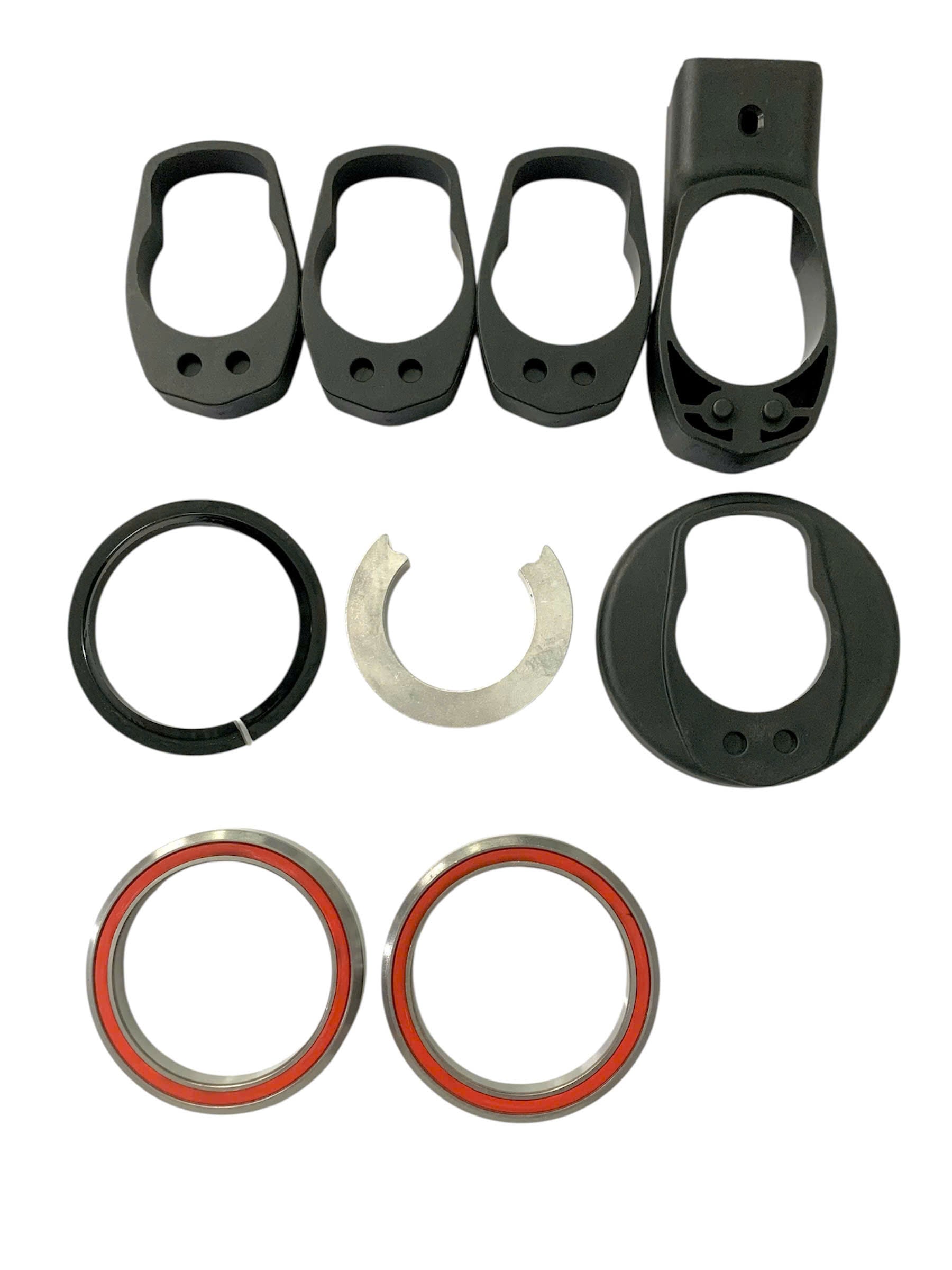

PACKAGE INCLUDES

• 02 x Sealed bearings 52-52mm (Red seal)

• 01 x Top dust cover (ABS plastic)

• 01 x Transition spacer / Stem cover (With cable routing slots)

• 03 x Interlocking aero spacers (Split-design for easy installation)

• 02 x Compression rings / Plastic split collets

ORDERING & CONSULTATION GUIDE

⚠️ Note: To ensure 100% compatibility with your frame and handlebar/stem, please carefully measure your frame’s headtube inner diameter (or your current headset bearings) before placing an order.
